IMAGE SYSTEM MODULAR JETTED TUB CONTROLS
Sequence Controls offers the most comprehensive line of controls and options for the jetted tub market. Our Image Control system is one of the most reliable and flexible control system ever offered in the jetted tub market. Its modular design allows you to configure a system to obtain the best cost/feature ratio possible.
The Image System is capable of controlling:
• Single, two speed, three speed and variable speed pumps
• Blowers
• Simple, sophisticated and multiple displays
• Solenoids
• Lights
• Other accessories requiring an electrical load
• Water temperature measurement
• Water level detection
The ease of servicing and the reduced inventory also plays a pivotal role in making this system the most advanced platform available today. All Image products are available in both 120 and 240 volt models.
The added benefit of front removable electronics on all of the displays, fully encapsulated and/or coated electronics on all modules and enhanced serviceability of the NEMA modules will reduce cost associated with servicing and replacement of units.
The Image family of Sequence electronic products is covered by a five year manufacturing defect warranty.
Let Sequence work with you to develop a unique system to provide a unique "look" for your tub line.
I. Image System Controllers
II. Temperature/Water Detection
III. Image System Displays
IV. Image System Lights
V. Image System Solenoids
VI. Suggested Image System Configurations
I. IMAGE SYSTEM CONTROLLERS
All Image controllers share the following features:
• IR communications between control modules
• Module to display interconnections with secured gas-tight Mini-DIN connectors
• UL and/or CSA approved to 15 Amps at 50°C ambient
• Operates single or variable speed loads
• Optional NEMA line and load connectors
• Conformally coated electronics on modules
• Fully encapsulated electronics on displays
• Retaining clips to prevent cables from disconnecting in transit or installation
a. Image Main Controller: IMC-213
The IMC (unit at right in the above photo) is the nucleus of the Image system and offers the following features:
• Operation of pumps, blowers, solenoids, lights and other accessories
• Includes outlet for LED light
• Connects to integrated temperature and water detect sensor (ITW)
• Interlocking interface with other modules
• Retaining clips to prevent cables from disconnecting in transit or installation
b. Image Auxiliary Unit: IAU-214
The IAU (unit at left in the above photo) controls auxiliary loads such as pumps and blowers, operated by the Image system and offers the following features:
• Up to four IAU modules per system
• Interlocking interface with other modules
c. Image Three Speed Pump Controller: IMC-266
The IMC-266 module is the Image system three speed pump control. It also accommodates white and color lights, tub water temperature measurement and water level detection. Two IMC-266 can be used in one system with other Image modules to create custom configurations.
• Operation of pumps, blowers, solenoids, lights and other accessories
• Includes outlet for LED light
• Connects to integrated temperature and water detect sensor (ITW)
• Retaining clips to prevent cables from disconnecting in transit or installation
d. Image Solenoid Driver: ISD-237
The ISD is an integrated pump/solenoid controller and can either be added into any Image system configuration for the control of neck-jet, back-jet, re-circulation or other functions and can also operate in standalone mode controlling all of the same functions. The main features of the ISD are:
• Four independent solenoid outputs which can control up to four standard
24VAC solenoids or six low power solenoids
(Sequence SOL-xxx series with two outputs wired in parallel)
• Customer-specific software determines solenoid functionality
• Also controls a single 120VAC, max 15 Amp load
• Compatible with all Image Displays
• IR communications with other Image modules
• Solenoid wiring length easily adjustable by installer
• Interlocking interface with other modules
• Retaining clips to prevent cables from disconnecting in transit or installation
e. Image Single Speed Controller: IMC-263
The IMC-263 module is the Image System stand-alone primary load control device, designed to operate a single speed load (pump or blower). It also accommodates white and color lights and conductive water level detection.
II. TEMPERATURE/WATER DETECTION
a. ITW-209
The ITW, patented by Sequence Controls, combines the temperature and water detect functions in one device and offers the following features:
• Capacitive water detection
• Patented "through the tub wall" temperature measurement
• Optional conductive water detection capability for use with blower dry cycles
or other specialized functions
• Lower installation cost, no special fittings or holes to drill
• Ease of service, only need to glue new unit in place
Conductive Water Detect In addition to the ITW-209, the ISD-237 and IMC-263 modules support conductive water detection.

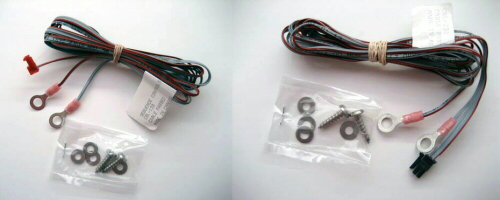

b. Image Conductive Water Detection Kits: CBL-128 & CBL-238
CBL-128 Image Conductive Water Detection Kit: When CBL-128 is connected to an ITW-209 Image Temperature and Water Detector it provides the ITW-209 with both capacitive and conductive water detection.
CBL-238 Image Conductive Water Detection Kit: When CBL-238 is connected to an IMC-237 Controller, or an IMC-263 Controller it provides the controller with conductive water detection.
III. IMAGE SYSTEM DISPLAYS
Sequence offers a range of displays from the basic LED version to "all singing, all dancing". All the Image displays offer the following features:
• 100% waterproof with silicone encapsulated electronics
• Re-programmable through mini-DIN connector (no outdated inventory!)
• Front removable for ease of service
• Interchangeable trim rings on all displays
• User-defined control modes saved in memory
• User-selectable configurations
• Optional backlit buttons (IDU-215 only)
• Retaining clip to prevent cable disconnecting in transit or installation
The IDU-215 display

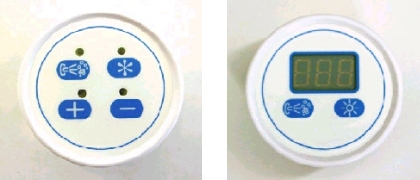

The IDU-252 (left) and IDU-254 (right) displays
IV. IMAGE SYSTEM LIGHTS
Sequence offers a choice of white and color LED lighting options. The Sequence lights have the unique feature of providing their status to the displays. This allows the user to "store" their preferred color and be truly synchronized. Another feature unique to Sequence in our wide range of lights are versions which use of Sequence's trim flush mount housing or use the commonly available removable front lens unit. When using multiple lights, a daisy chain wiring approach is used, wiring one light to the other.
a. IWL-217
• Up to 4 lights controlled by one IMC or ISD
• No additional power source or transformer required
• LEDs provide thousands of hours of use
b. ICL-239 and ICL-244
These LED lights offer two mounting styles. The ICL-239 mounts in a 1.65" (4.2cm) opening and offers a very low tub profile. The ICL-244 is the light assembly only and fits in a front-serviceable light housing. Both color lights offer the following features:
• All colors of the rainbow spectrum available
• Customer-specific color programs
• Up to four lights controlled by one IMC or ISD
• Full color synchronization for up to four lights
• Storage of user color selections in Image displays
• LEDs provide thousands of hours of use
V. IMAGE SYSTEM SOLENOIDS
Sequence offers a wide range of solenoids for use with the Image system or in other applications.
• Single inlet/ Single or multiple outlet
• Straight or right angle configurations
• Pilot operated
• 24VAC operation

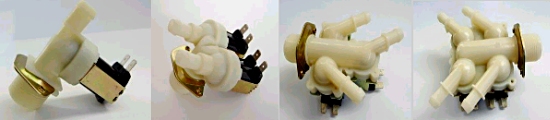

Solenoids SOL-001-S, SOL-002-RA, SOL-003-S and SOL-004-S
VI. SUGGESTED IMAGE SYSTEM CONFIGURATIONS
Here are several suggested product configurations. By changing some of them slightly, several new features can be added for minimal cost. Some of these are shown as alternates and options in the details of the configurations below.
SYSTEM #1: MID-RANGE WHIRLPOOL
Proposal A
• IDU-252 Round display, 2 (5.1cm) diameter, 4 buttons, 4 LEDs, clear housing
• IMC-213 Image Main Control unit, 120VAC,
• ITW-209 Capacitive water detect and temp probe
• CBL-168 IDU to IMC Interconnect Cable
Alternate Display:
IDU-254 Round display, 2 (5.1cm) diameter, 2 buttons, 3 x 7 segment LEDs
or
Proposal B
• New IMC-263 controller (single load configuration)
• Conductive water detect
• IDU-252 Round display (2) 4 buttons, 4 LEDs, clear housing
• CBL-168 IDU to IMC Interconnect Cable
Alternate Display:
IDU-254 Round display (2) 2 buttons, 3 x 7 segment LEDs
SYSTEM #2: HIGH END WHIRLPOOL
• IDU-254 display, two buttons and 3 x 7 segment display
(First button controls pump, second button controls light)
• IMC-213 Image Main Control unit, 120VAC (Includes outlet for LED light)
• ITW-209 Capacitive water detect and temp probe
• CBL-168 IDU to IMC Interconnect Cable
Alternate Display:
IDU-215 with up to 8 buttons, 3 X 7segment LED, front removable
Optional Color Light
ICL-239-01-01-01 LED color light in housing
SYSTEM #3: MID-RANGE BLOWER SYSTEM
• IDU-254 display, two buttons and 3 x 7 segment display
(First button controls blower, second button controls light)
• IMC-213 Image Main Control unit, 120VAC (Includes outlet for LED light)
• ITW-209 Capacitive water detect and temp probe
• CBL-168 IDU to IMC Interconnect Cable
Alternate Display:
IDU-215 with up to 8 buttons, 3 X 7segment LED, front removable
Optional Color Light
ICL-239-01-01-01 LED color light in housing
SYSTEM #4: HIGH END BLOWER & WHIRLPOOL SYSTEM
• IDU-215 with up to 8 buttons, 3 X 7segment LED, front removable
• IMC-213 Image Main Control unit, 120VAC (Includes outlet for LED light)
• RING-60-W (white trim ring)
• ITW-209 Capacitive water detect and temp probe
• CBL-168 IDU to IMC Interconnect Cable
• IAU-214 auxiliary control module for additional loads
Optional Color Light
ICL-239-01-01-01 LED color light in housing
OTHER SUGGESTED SYSTEMS
a. Pump or Blower with Solenoids
The Image Solenoid Driver, (ISD-237), offers incredible flexibility because it can control a 15-amp load as well as four solenoids and has conductive water detect capability.
ISD-237
ITW-209-01-01-01
CBL-168 (display cable)
Options:
a. IDU-215-01-03-01, up to 8 buttons, 3 X 7segment LED,
front removable,
dimensions 2.35 X 6.25 (trim ring extra)
b. IDU-254-01-01-01 display with two buttons and 3 x 7 segment LED display, 2 dia.
c. IDU-252-01-01-01 display (2) up to four buttons
d. SOL-002 One inlet, two outlet 24V solenoids
e. SOL-004 One inlet, four outlet 24V solenoids
b. Chromatherapy System
Use of the IMC-213 with an IDU-252 multi button display to control up to four color LED lights with custom software to create a unique chromatherapy system with guaranteed synchronized color.
• IDU-252 Round display (2) 4 buttons, 4 LEDs, clear housing
• IMC-213 Image Main Control unit, 120VAC
• ICL-239-01-01-01 LED color light in housing
